RX08 Controller

I have done some work on a Posibus interface to the RX01/RX02 floppy drives.

Here are a couple of pictures of it:

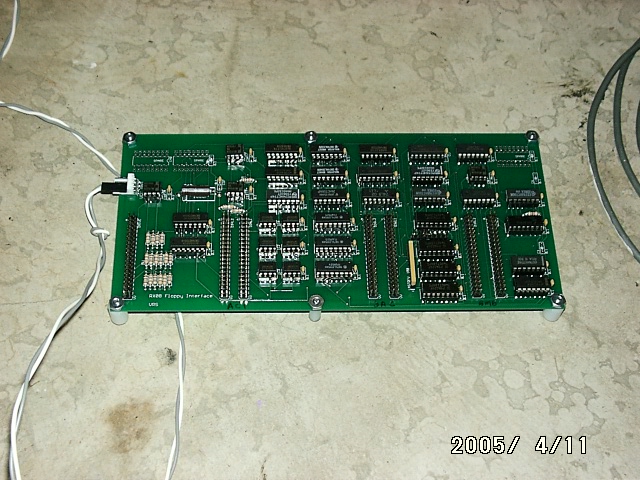

The board assembled.

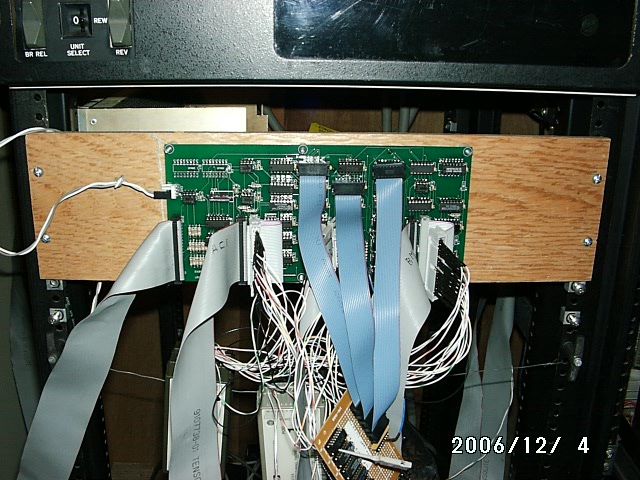

...and trying to debug it.

I don't really know how extensive the problem here is. It didn't work when I tried it, and the problem seems to be with the set-up times going into some of the status latches. It could definitely use more debug work.

My hope is to someday get it to work and to use it with one of the PDP-8/L, to allow the 8/L to exchange files more easily with the other systems.



Last updated on 02/25/23 02:21

vrs
